Common Library - Alpha 2

NOTE: Alpha 2 is restructured so is regrettably incompatible with all previous releases. Any programs you have with previous veeos objects or function calls will need to be updated to use Alpha 2 objects/functions.

• Documentation
  • Reference Guide (also available as PDF)

  • Installation - use either of two options based on which download you use.

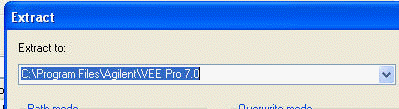

    • ZIP download: Using your favorite zip utlity, unzip the download to wherever you have VEE installed.

      This will require Administrator access. Note that you should end up with a "veeos" directory inside your VEE install. Depending upon UAC settings on your system you may not be able to unzip directly to the VEE install. The alternative is to unzip to a temporary directory and then move the code to your VEE install.

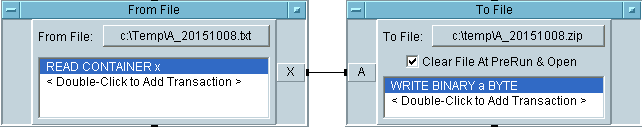

    •  Text (container) download: For the Container style download, read into VEE in Container format and then write out in Binary. Then unzip as above.

  • Users Guide - there are two ways to use the veeos library

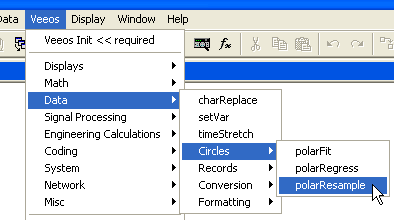

    • Objects from the menu: The veeos menu allows you to instantiate objects directly into your program and use them as you would any other object. See the Reference Guide for details of the various available objects.

    • Functions: most of the veeos objects have a corresponding function with the same name but a prefix of "o_". Hence you can use the polarResample object in your program or you can call the o_polarResample() function directly in your own code or use a VEE function call object.

  • Developer's Guide
    • Active X/dotNET - these are problematic for an imported library since they involve references to external code which may or may not exist on the target system and may be in different locations on the target system. Also the references do not follow the library import and have to be recreated by the end user. ActiveX/dotNET are therefore more suitable for standalone downloadable programs in the Contributed or Shared areas.
    • General function - the most appropriate functions for this library are general purpose, small and well defined, self-contained as much as possible, portable, and potentially usable by many people.
• Wishlist
• Releases (download and install). Note that a third alternative for downloading after you have an initial version installed is to use downloadLatestLibrary
  • Alpha2
    • 30NOV2016 (zip file)(vee container) - add printText and do a little cleanup- this is intended as final Alpha
    • 03JAN2016 (zip file)(vee container) - clean up various errors, mostly in function calls.
    • 13NOV2015 (zip file)(vee container) - new PI, SIGMA functions in math and envelope() in Signal Processing
    • 08NOV2015 (zip file)(vee container) - add random functions and some examples
    • 04NOV2015 (zip file)(vee container) - initial release
